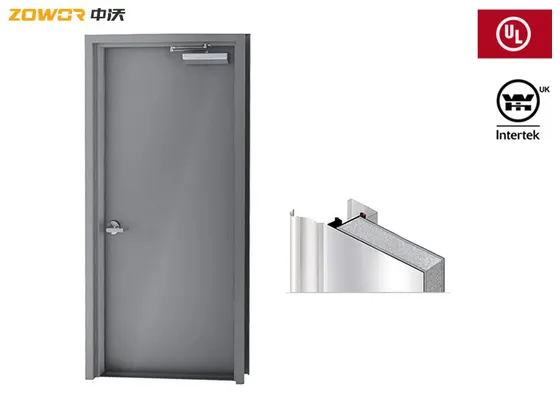

Steel 120 Minute Fire Rated Doors With UL Listed Prime Paint Fireproof Steel Door
Minimum Order Quantity :
10 set
Price :
Negotiable
Packaging Details :
Inside Bubble Bags+ Strong Carton+Wooden PalletInside Bubble Bags+ Strong Carton+…
Delivery Time :
45 Days After Payment Received
Payment Terms :
T/T
Supply Ability :
600 Sets per Day
Place of Origin:
CHINA
Brand Name:
ZHONGWO
Certification:
BS， UL, CCC
Model Number:
ZW-SM10
DETAIL INFORMATION
PRODUCT DESCRIPTION
Detail Information
Material:
Galvanized Steel
Fire Rating:
30/60/90/120 Min
Finish:
Prime Paint, Powder Coating, Wood Grain
Thickness Of Door Leaf:
40/45mm
Thickness Of Steel Sheet For Door Leaf:
20-18-16 Ga.
Thickness Of Steel Sheet For Door Frame:
18-16-14 Ga.
Infilling:
Perlite Board; Honeycomb Paper, Mineral Core
Glass:
UL Listed Fireproof Glass
Opening Force:
66-68 N
Opening Type:
Swing Open
Highlight:
Prime Paint fireproof steel door
,
90 Minute fire rated exterior doors
,
fire Rated Doors With UL Listed
Product Description
Steel 30/60/90/120 Minute Fire Rated Doors With UL Listed
30/60/90/120 Minute Fire Rated Doors Advantage
Top Quality and Eco-friendly& Healthy Infilling Material:
All of our fireproof perlite board must reach level A1 of the combustion performance standard according to GB8624-2006 and level ZA2 of toxicity standard according to GB/T20285-2006.
Besides, the density of our fireproof perlite board is in top quality, originally it reaches 472.6kg/m3, by drying treatment it still remains457.3kg/m3, which are both great higher than the standard of 420kg/m3.
Top Fire Insulation Performance
Average temperature rise of unexposed surface reaches 94.2℃, highest temperature rise at single point reaches 148.6℃, both are far away lower than the standard of not beyond 140℃ and 180℃. And the highest temperature point on door frame reaches 140.8℃, also much lower than the standard of not beyond 360℃.
Small Door Leaf Opening Force
Door leaf opening force of our rosewood steel fire door is no more than 66N, which is much smaller than 80N according to GB12955-2008.
30/60/90/120 Minute Fire Rated Doors Application
building project, business, home decoration(Office, hotel, church, home etc.)
Specification of 30/60/90/120 Minute Fire Rated Doors
Product Name
Fire Rated Doors
Fire Rating
20/30/60/90/150/180mins
Standard
NFPA,ANSI/UL 10B,UL10C
BS476-22, EN1634-1:2008
Material of Door Leaf
Galvanized Steel Sheet
Material of Door Frame
Galvanized Steel Sheet
Thickness of Steel Sheet of Door Leaf
20-18-16 Ga. (1.0/1.2/1.6 mm)
Thickness of Steel Sheet of Door Frame
18-16-14 Ga. (1.2/1.6/2.0mm)
Thickness of Door Leaf
US Standard Door: 40/45 mm
BS Standard Door: 45/50/55/64 mm
Frame Depth
120/130/160 mm
Weight
25-35Kg/㎡
Size
Single Door: 3’X7’; 4’X8’
Double Door: 6’X7’; 8’X8’
Or customized
Open Style
Swing Open
Infilling Material
Standard: Fireproof Perlite Board
Options: Honeycomb Paper, Mineral Wool, Polyethylene Foam
Surface Treatment
Prime Paint(UV/PU), Powder Coating, Wood Grain
Color
Milk White, Matte Orange, Dark Gray, Cold Gray White or as Request
Glass
Standard: American or British Standard Tested Clear or Wired Glass
Or Customized As Request
Fireproof Seal Strip
FPJ-B-20X 2
FPJ-A-15X 2
Or Customized
Warranty
2 years
Package
PE Paper+Double Layer Strong Carton or wooden pallet
Delivery Time
45Days After Payment Received

Fire doors with glass lites:
A. Reinforcement channel is provided.
B. Glass frame and glazing bead is steel.
C. Glass is UL listed glazing material, popular size is 200X600X5 mm.
D. Maximum allowable glass area:3 Hours, 100 sq. in. Per door leaf (Fire lite)
Package
Package method is vital to ensure the safety and to avoid any damage in transportation, so we values very much the correct package.
Standard: PE Paper+Double Layer Strong Carton or wooden pallet
We can also pack doors and frames as your request, just exchange the details with us.
